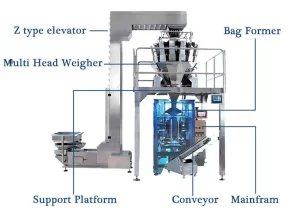

VFFS Multihead Weigher Packing Machine
| Specification | HW-VFFS-MHW |
|---|---|
| Bag making forms | Pillow bag, perforated bag, pin bag, vacuum bag |
| Packing Speed | 10-30 packs/minute |
| Bag size | (length) 100-470mm (width) 115-350mm |
| Compressed air | 0.8Mpa 0.5 m³/min |
| Measurement accuracy | ≤± 1.5-2% |
| Maximum packaging film width | 730mm |
| Packaging materials | BOPP/CPP, PET/AL/PE |
| Power Supply | AC220V±10%, 50/60Hz, 2KW |
The Vertical Bag Filling Packaging Machine is designed to automatically form bags, fill products, and seal packages in one continuous process. By integrating different dosing systems, the machine can handle granules, powders, and liquid products with high efficiency and precision.
It is widely used for packaging products such as peanuts, candies, cookies, potato chips, rice, sugar, beans, dried fruit, pet food, ground coffee, milk powder, detergent powder, shampoo, ketchup, spices, and more.
Key Features
-
Automatic bag forming, filling, and sealing
-
Compatible with multiple dosing systems (multihead weigher, auger filler, liquid pump, volumetric cup, etc.)
-
High-speed and stable operation
-
Adjustable bag size and packaging capacity
-
Easy operation and maintenance
Applicable Product Types
-
Granules: peanuts, rice, sugar, beans, pet food, dried fruit
-
Powders: milk powder, detergent powder, spices, ground coffee
-
Liquids & Pastes: shampoo, ketchup, sauces
Pls feel free to contact us at info@multiweigher.com for any inquiries.
Automatic Premade Pouch Packing Machine
| Specification | HW-FFS-MHW |
|---|---|
| Premade pouch | Standup, zipper, spout, and shaped pouches |
| Packing Speed | ≤ 60 bags/min |
| Filling Range | ≤ 1500 g |
| Compressed air | ≥ 0.4 m³/min |
| Bag Width | 80-220 mm |
| Bag Length | 100-370 mm |
| Machine Weight | 1800 kg |
| Power Supply | 380 V 3P 5W 50HZ |
This series of premade pouch packaging machines is designed for fully automatic bag feeding, filling, and sealing. It is especially suitable for manufacturers requiring multiple bag types, large packaging capacity, and small-batch production flexibility.
The machine supports a wide range of commonly used pouch styles, including three-side seal and four-side seal bags. It can also package special bag types such as hanging hole pouches, stand-up pouches (doypack), and custom-shaped bags.
Key Advantages
-
Fully automatic pouch feeding, opening, filling, and sealing
-
Compatible with multiple bag types and sizes
-
Fast and easy bag size changeover
-
Suitable for high-capacity and small-batch production
-
Flexible integration with various dosing systems
Application Range
By switching different metering systems, the machine can package:
-
Powders: milk powder, spices, flour, coffee powder
-
Granules: rice, sugar, beans, nuts, pet food
-
Liquids: sauces, oils, shampoo
-
Pastes: ketchup, cream, seasoning paste
-
Solid products: candies, biscuits, hardware parts
Pls feel free to contact us at info@multiweigher.com for any inquiries.
Multihead Weigher
Equipped with premium sensors and an integrated modular design, our multihead weighers ensure simplified commissioning, exceptional stability, and superior accuracy. The intuitive Touch-Screen HMI (Human-Machine Interface) supports multiple languages and configurable parameters, allowing for flexible operation across different countries and regions.
- Intelligent Diagnostics: Featuring a dedicated debugging interface, visual fault alarms, and self-learning intelligent control functions.
- Hygienic & Tool-less Design: Constructed from food-grade stainless steel, the equipment features a tool-free disassembly design for rapid cleaning and maintenance.
- Modular Unit Construction: The entire machine utilizes a modular design and standardized molding processes, ensuring that components are fully interchangeable and easy to operate.
Application of Multihead Weigher
service related FAQ’s
- To ensure everything is perfect, we will send you detailed photos and testing videos of the machine before delivery.
- You are also more than welcome to visit our facility to inspect the machine in person.
- You are welcome to appoint a third-party inspection agency (such as SGS or TÜV) to verify the machine and witness the loading process.
Bubble film wrapping inside, Export Standard Plywood Case outside.
Normally, our delivery time is around 20 to 45 days. For stock items, it takes 15-20 days, for customized products, it need more time for design and production, it may take 30-60 days.
We provide long term maintenance service, and maintenance parts are free within the warranty period and only charge parts expensed if your warranty has expired.
- Manufacturer’s Qualification: Look into the company’s awareness, R&D capabilities (collaborating with university professors), existing customer base, and certifications (e.g., CE approved) .
- Weighing Range & Accuracy: Select the appropriate weighing range based on the target product’s weight and volume. Accuracy is dependent on choosing a weigher range that closely matches the product’s weight (e.g., avoid using a 100g-5000g weigher for 200g products if high accuracy is needed) .
- Packing Speed vs. Accuracy: Understand the inverse correlation between speed and accuracy; higher speed generally means slightly less accuracy.
- Ease of Operation: The machine should be simple to operate and maintain in daily production to save time and effort .
- After-Sales Service: Ensure the supplier provides comprehensive after-sales support, including installation, debugging, training, and maintenance.
